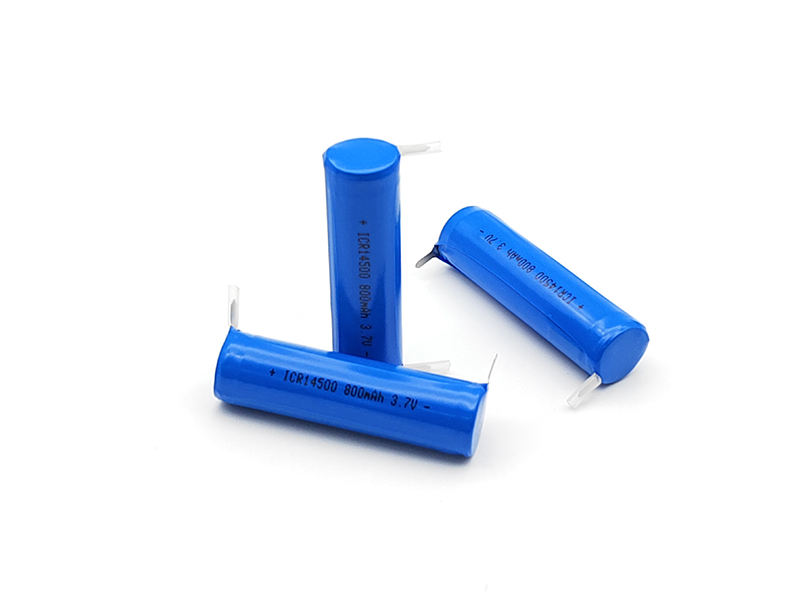

3.7V cylindrical lithium battery Product model: XL 3.7V 800mAh
3.7V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 14500
·Single cell voltage: 3.7V
·Nominal voltage after battery pack combination: 3.7V
·Single battery capacity: 0.8Ah
·Battery combination: 1 series and 1 parallel
·Battery voltage range after combination: 3.0~4.2V
·Battery capacity after combination: 0.8Ah
·Battery pack power: 2.96Wh
·Battery pack size: 14.3*16*50mm
·Maximum discharge current: <0.8A
·Instantaneous discharge current: 1.6~2.4A
·Maximum charging current: 0.2~0.5C
·Charge and discharge times: >500 times
·Main chip: (Seiko, TI)
3.7V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
